GSM and 3G Weatherproof Telephones

- GSM and 3G Weatherproof Full Keypad Telephones
- GSM and 3G Weatherproof Hotline Telephones
- GSM and 3G Weatherproof Speed Dial Telephones
- GSM and 3G Weatherproof Telephones with Beacon & Horn



TASHKOO offered GSM and 3G weatherproof telephones are fully contained within a corrosion resistant cast aluminium weatherproof case providing complete protection against dust and moisture ingress, resulting in a highly reliable product with a long MTBF.

The unique robust handset is manufactured from moulded Bulk Molding Compound and designed specifically to withstand arduous use in all environments, armoured cord to provide additional resistance to vandalism or heavy industrial use. The Weatherproof Telephones are designed for use by the railways, power stations, the armed services and heavy industry which require very reliable telephony under adverse conditions

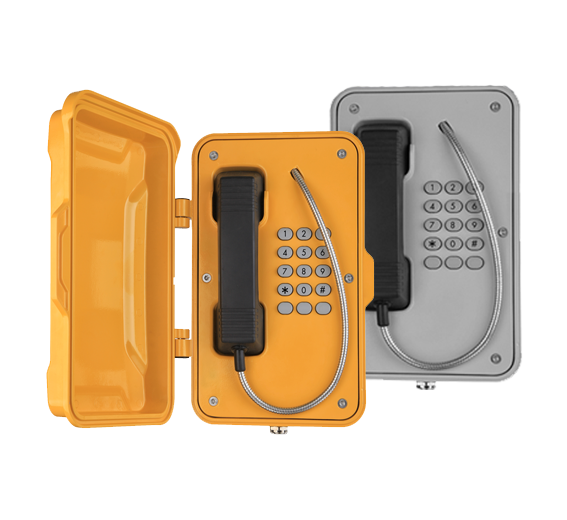

The units can be suppled in standard Yellow or Grey colors, however other colors can be provided subject to a minimum order quantity. Also the units can be supplies with or without protection door (as shown in the picture)



TASHKOO Weatherproof GSM and 3G Telephones can be supplied with integrated Horn and Beacon or with integrated Horn only. In these models when there is an incoming call, phone rings loudly and and beacon will flashing when (in Beacon + Horn models) , these units come with auto-answer feature after 5 ringing (the defualt is 5 rings and can be program ). Auto- release the line when the other side cut off the line, built-in amplifier, with external ringer and lamp:15W(30W optional), and broadcasting function. These units must be AC powered localy.

Technical Specifications

Casing Material : Die cast aluminium, epoxy powder coated.
Colors
: yellow, other colors to special order
Handset Material : Cycoloy with stainless steel spiral cord
Keypad : Weatherproof Rubber Keypad
Temperature : Operating: -30°C to +65°C - Storing: -40°C to +75°C
Weather Resistance : IP66-IP67
Ringing Tone : Shrill warble tone 90 dBA @ 1 metre typical
Hook switch : Electronic / magnetic (no Hook Switch for Dial Speed Models)
M.T.B.F. : Calculated to have an M.T.B.F. in excess of 50,000 hours using
Weight : Up to 6 kg depending on option

GSM / 3G Specifications

Standard SIM card
- GSM :
GSM 850/900/1800/1900 MHz
- 3G: WCDMA 850/1900/2100 MHz
Adapter Input : 7.4 V- 12 V DC
Power Consumption : Idle: 75mA / Active :160 mA



TASHKOO Weatherproof GSM and 3G Telephones can be offered in following options:
- Full Keypad Telephones with protection door
- Full Keypad Telephones without protection door
- No Keypad (Hot line) Telephones with protection door
- No Keypad (Hot line) Telephones without protection door
- Speed Dial Telephones with 1 steel button and protection door
- Speed Dial Telephones with 1 steel button, without protection door
- Speed Dial Telephones with 2 steel button and protection door
- Speed Dial Telephones with 1 steel button, without protection door
- Full Keypad Telephones with Horn and protection door
- Full Keypad Telephones with Horn, without protection door
- Full Keypad Telephones with Horn & Beacon and protection door
- Full Keypad Telephones with Horn & Beacon, without protection door





Download Brochure:     - Weatherproof Telephones



Please see below "ORDERING INFORMATION" for diffrent options and relevant part numbers.




ORDERING INFORMATION

PART NO. ITEM DESCRIPTION PRICE
TK-101-FK-GSM Full Keypad Telephones with protection door TBA
TK-103-FK-GSM Full Keypad Telephones without protection door TBA
TK-101-CB-GSM No Keypad (Hot line) Telephones with protection door TBA
TK-103-CB-GSM No Keypad (Hot line) Telephones without protection door TBA
TK-101-1B-GSM Speed Dial Telephones with 1 steel button and protection door TBA
TK-103-1B-GSM Speed Dial Telephones with 1 steel button, without protection door TBA
TK-101-2B-GSM Speed Dial Telephones with 2 steel button and protection door TBA
TK-103-2B-GSM Speed Dial Telephones with 1 steel button, without protection door TBA
TK-101-FK-H-GSM Full Keypad Telephones with Horn and protection door TBA
TK-103-FK-H-GSM Full Keypad Telephones with Horn, without protection door TBA
TK-101-FK-HB-GSM Full Keypad Telephones with Horn & Beacon and protection door TBA
TK-103-FK-HB-GSM Full Keypad Telephones with Horn & Beacon, without protection door TBA

Please contact us for other options (diffrent colors) and also price information
